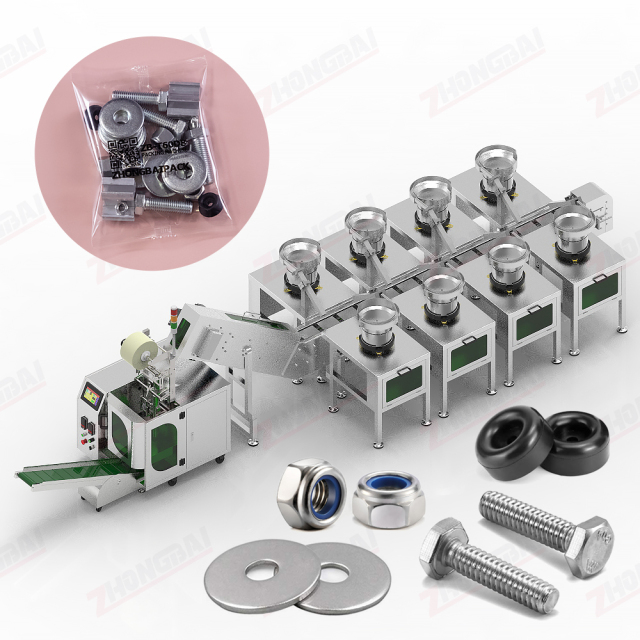

Hardware Fastener Components Kit Packing Machine with Check Weigher
No.ZB-H242
▶ ZB-T60D8 hardware fastener componetns kit packing machine with check weigher. ▶ This machine is suitable for bolt, hexagon nut, flat washer or other hardware fasteners and accessories etc. ▶ It is an integrated, automated solution designed to count, weigh, and package these components with high efficiency and accuracy.
User Manual One Year Warranty Install & Debug Videos Custom Packing Solution Free Lifetime Technical Support

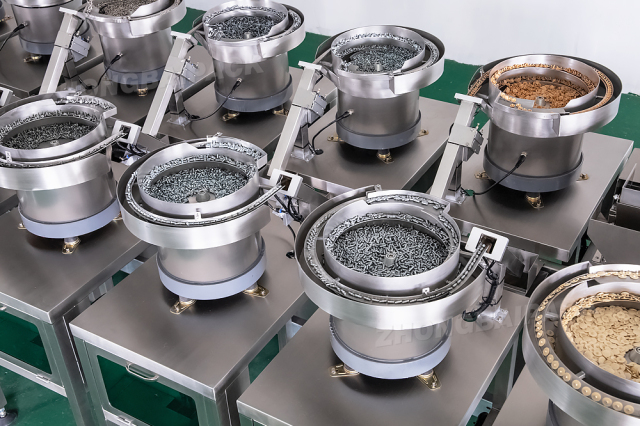

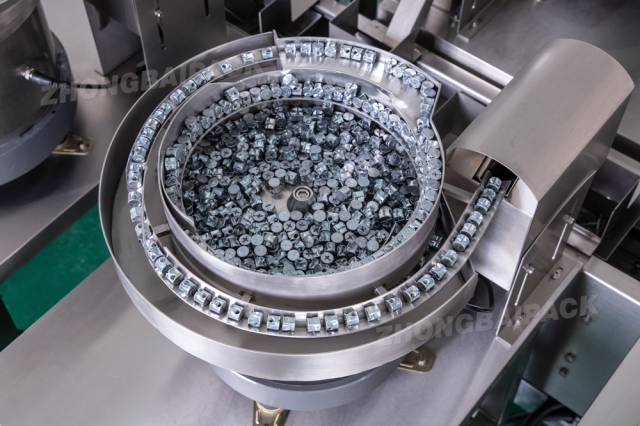

▶ Flexible design for vibratory bowl feeders enables quick changeover between different parts, allowing it to handle bolts, screws, washers, and nuts in a wide range of specifications.
▶ The check weigher ensures that only packages with the correct weight are released as final products.
Application: ● Fasteners: screw, bolt, nut, washer, rivets, nails etc. ● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts. ● Hardware Parts: hardware components, hardware connectors, metal parts etc. ● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc. ● Others: small hardware or plastic parts, regular shape or irregular shape of parts.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Precision Counting: advanced sensors and software algorithms ensure precise counting and reduce the risk of missing or extra components.
● Versatility: the machines can be adapted to package hardware and plastic components in various sizes and shapes. They come with adjustable settings for product count and bag length , allowing customization based on the specific packaging requirements.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Programmable Recipes: allows operators to set up different packaging configurations recipes that specify the quantities of each component in a kit.
● Flexible Configuration: modular design enables easy addition or removal of counting modules to accommodate changes in product offerings.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Construction: built with high-quality materials, our packaging machines are designed to withstand the rigorous demands of industrial environments. The robust construction ensures long-term durability and reliable performance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-T60D8 Capacity: 10-30bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 4.3KW Voltage: 220V, 50/60HZ Machine dimension: (L)6500×(W)1600×(H)1900mm Packing material: Plastic film | Paper film | Premade pouch
