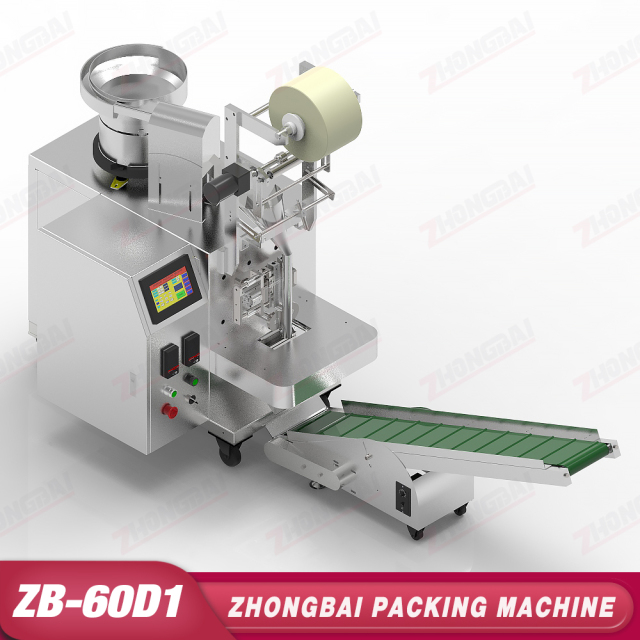

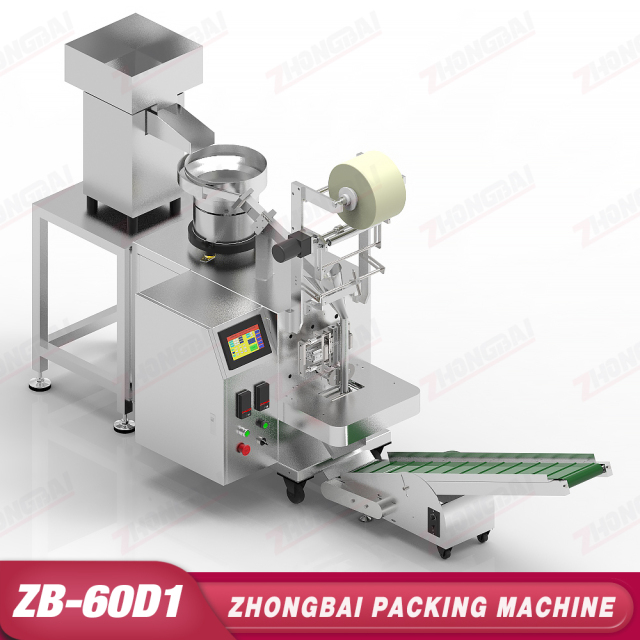

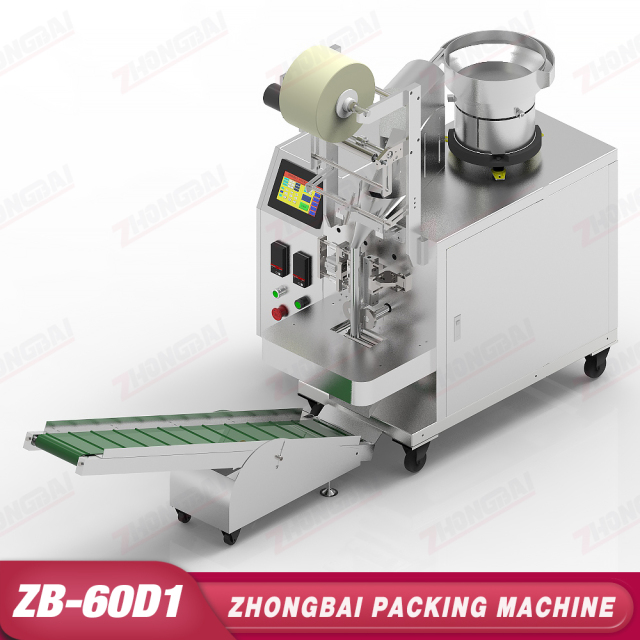

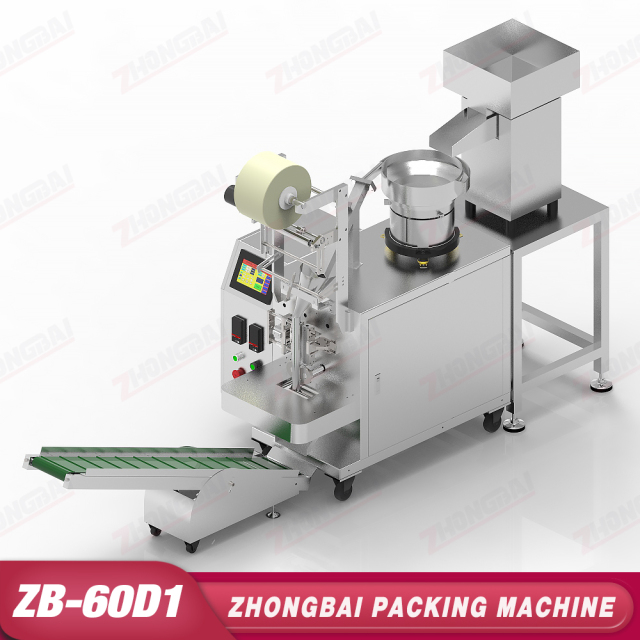

Counting Packing Machine with One Bowl ZB-60D1

Counting Packing Machine with One Bowl

Model: ZB-60D1
Capacity: 10-80bags/min
Counting quantity: set on touch screen
Bag width:  max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.8KW
Voltage: 220V, 50/60HZ
Machine Dimension: (L)2100×(W)750×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch
Description Video
Description


        ● Fasteners: screw, bolt, nut, washer, rivets, nails etc.

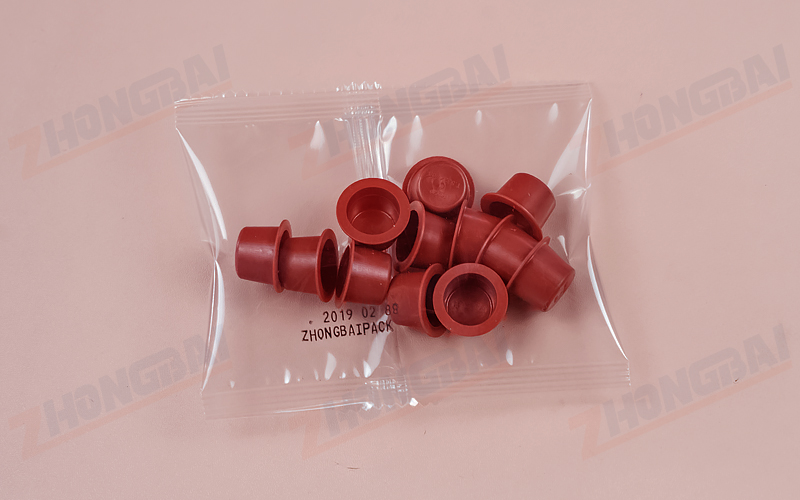

        ● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts.
        ● Hardware Parts: hardware components, hardware connectors, metal parts etc.
        ● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, door handle, hinge etc.
        ● Food&Medicine: capsules, tablets, pills, candies etc.

● Others: small hardware or plastic parts, regular shape or irregular shape of parts.



     ● The vibratory bowl and precise counting control systems are customized according to the parts. Ensure the precision quantity of each bags.


     ● Mitsubishi PLC control, and there is English touchable human-machine operation interface, it is easy to operate. High degree of automation.


     ● Stainless steel structure, it is only necessary to set the needed parameters at the display screen, the control system can automatically optimize and match with the actions, realizing the optimal packing speed.

    ● Control by intelligent temperature controller, which guarantee that the sealing has good appearance and flatness.


    ● ZHONGBAI advanced programmable control system, ensure the machine running stable and reliable with easy operation.


    ● Machine equip with safety protection device for each dangerous parts, ensure the safety operation.


    ● Parts counting, bag making, filling, sealing, and bags counting can be done automatically.
