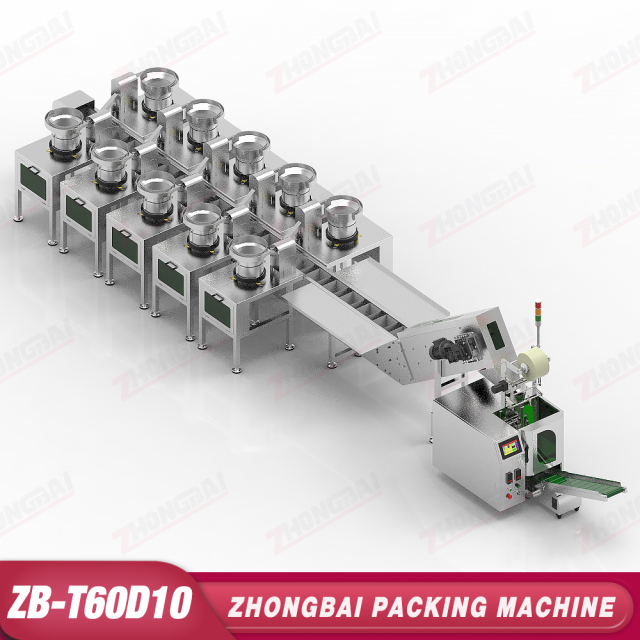

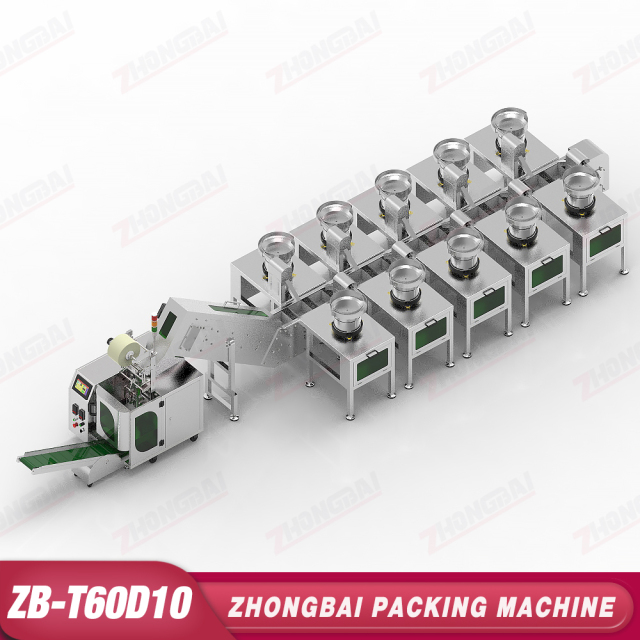

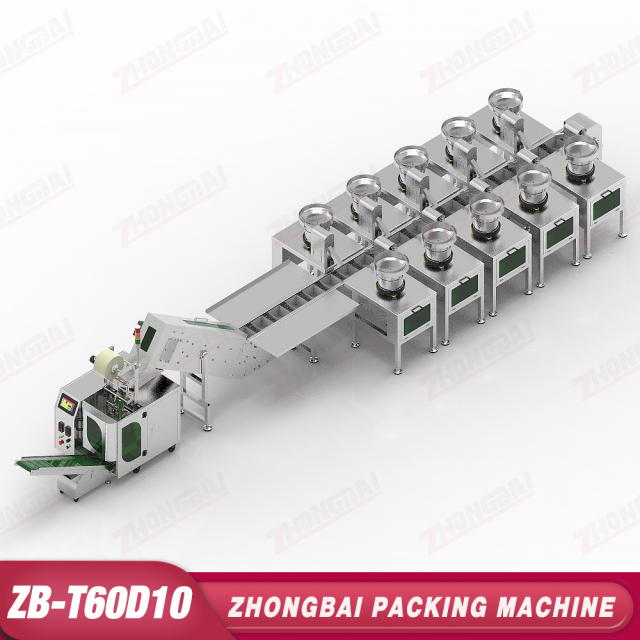

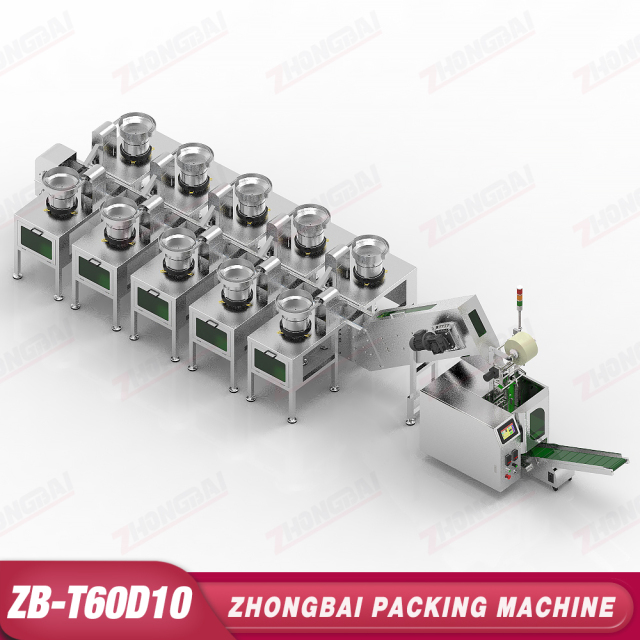

Counting Packing Machine with Ten Bowls Lifting Bucket Conveyor

Model: ZB-T60D10
Capacity: 10-30 bags/min
Counting quantity: set on touch screen
Bag width:  max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 5KW
Voltage: 220V, 50/60HZ
Machine dimension: (L)7400×(W)1600×(H)1900mm
Packing material: Plastic film | Paper film | Premade pouch

   User Manual
   One Year Warranty
   Install & Tutorial Videos
   Custom Packing Solution
   Free Lifetime Technical Support
  • Description

  • Videos

Application:
● Fasteners: screw, bolt, nut, washer, rivets, nails etc.
● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts.
● Hardware Parts: hardware components, hardware connectors, metal parts etc.
● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, door handle, hinge etc.
● Others: small hardware or plastic parts, regular shape or irregular shape of parts.

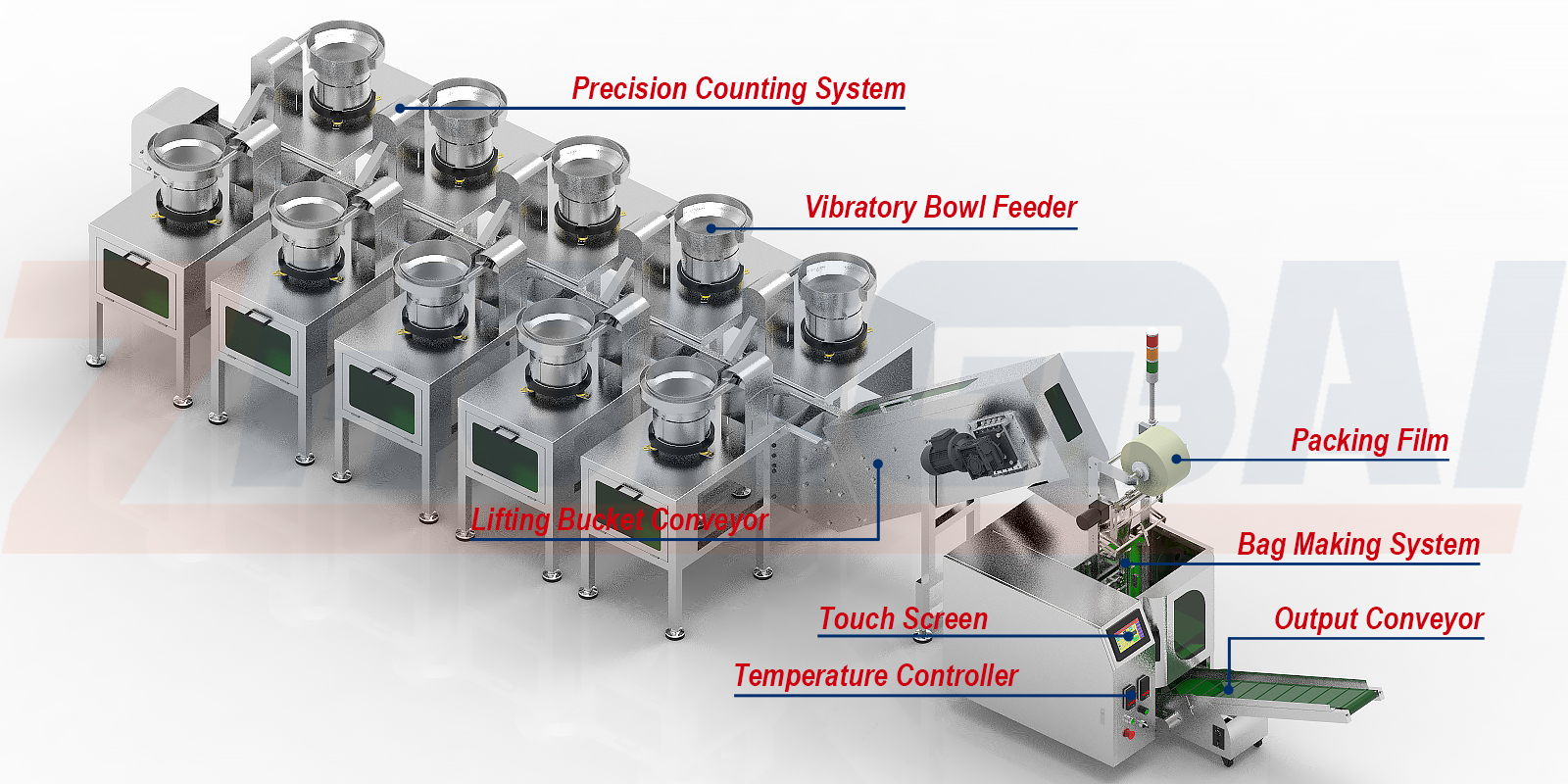

Main Structure:
Counting Packing Machine with Ten Bowls Lifting Bucket Conveyor


Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Precision Counting: advanced sensors and software algorithms ensure precise counting and reduce the risk of missing or extra components.
● Versatility: the machines can be adapted to package hardware and plastic components in various sizes and shapes. They come with adjustable settings for product count and bag length , allowing customization based on the specific packaging requirements.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Programmable Recipes: allows operators to set up different packaging configurations recipes that specify the quantities of each component in a kit.
● Flexible Configuration: modular design enables easy addition or removal of counting modules to accommodate changes in product offerings.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Construction: built with high-quality materials, our packaging machines are designed to withstand the rigorous demands of industrial environments. The robust construction ensures long-term durability and reliable performance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.


Technical Specificatioin:

Model: ZB-T60D10
Capacity: 10-30 bags/min
Counting quantity: set on touch screen
Bag width:  max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 5KW
Voltage: 220V, 50/60HZ
Machine dimension: (L)7400×(W)1600×(H)1900mm
Packing material: Plastic film | Paper film | Premade pouch

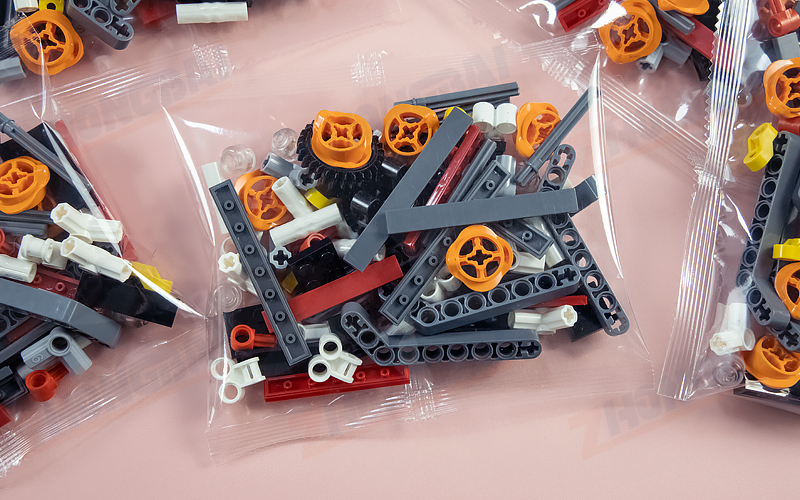

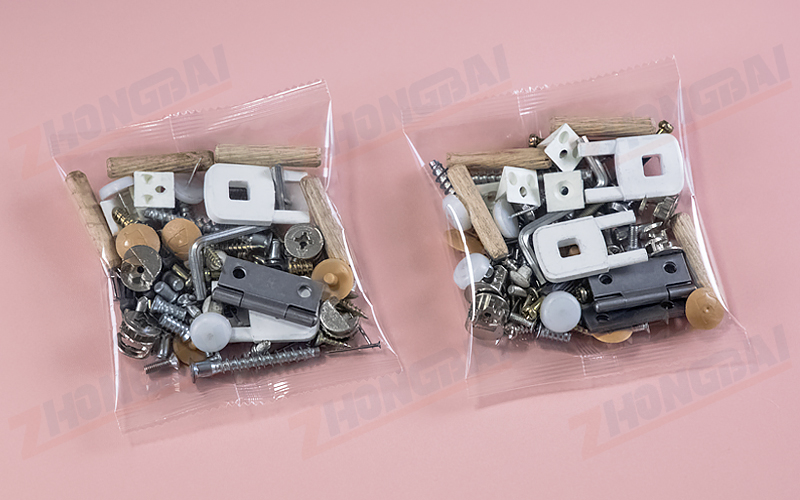

Packaging Samples:
Packing Machine with Ten Vibratory Bowl Feeders  Packing Machine with 10 Vibratory Bowl Feeders  Ten Feeders Counting Packing Machine

10 Feeders Counting Packing Machine  Packing Machine ZB-T60D10  Counting Packing Machine ZB-T60D10

Optioinal Devices:
Vibratory Bowl Feeder Packing Machine  Vibratory Feeder Counting Packing Machine  Automatic Counting Packing Machine
Small Parts Counting Packing Machine
Small Parts Counter Packing Machine  ZHONGBAI Counting Packing Machine
